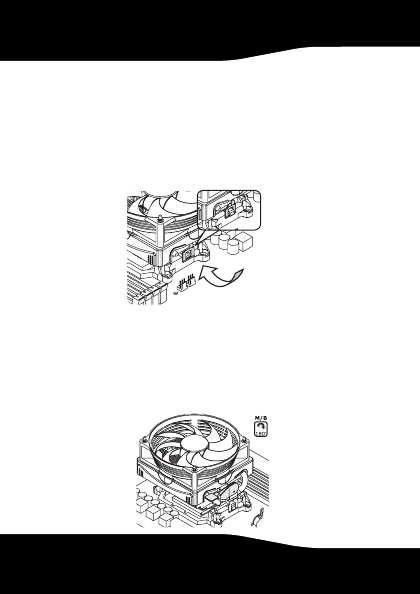

4 Secure the CPU cooler assembly to the

mounting posts by hooking one end of

the mounting bracket (the end without

the tightening cam) over the outboard

mounting post (the one toward the

edge of the system board).

5 Hook the other end of the mounting

bracket (the one with the tightening

cam) over the inboard mounting post,

then press the cam tightener in toward

the system board until it locks.
